Alvito Atessa stainless steel 3 way tap, high, matt
Description

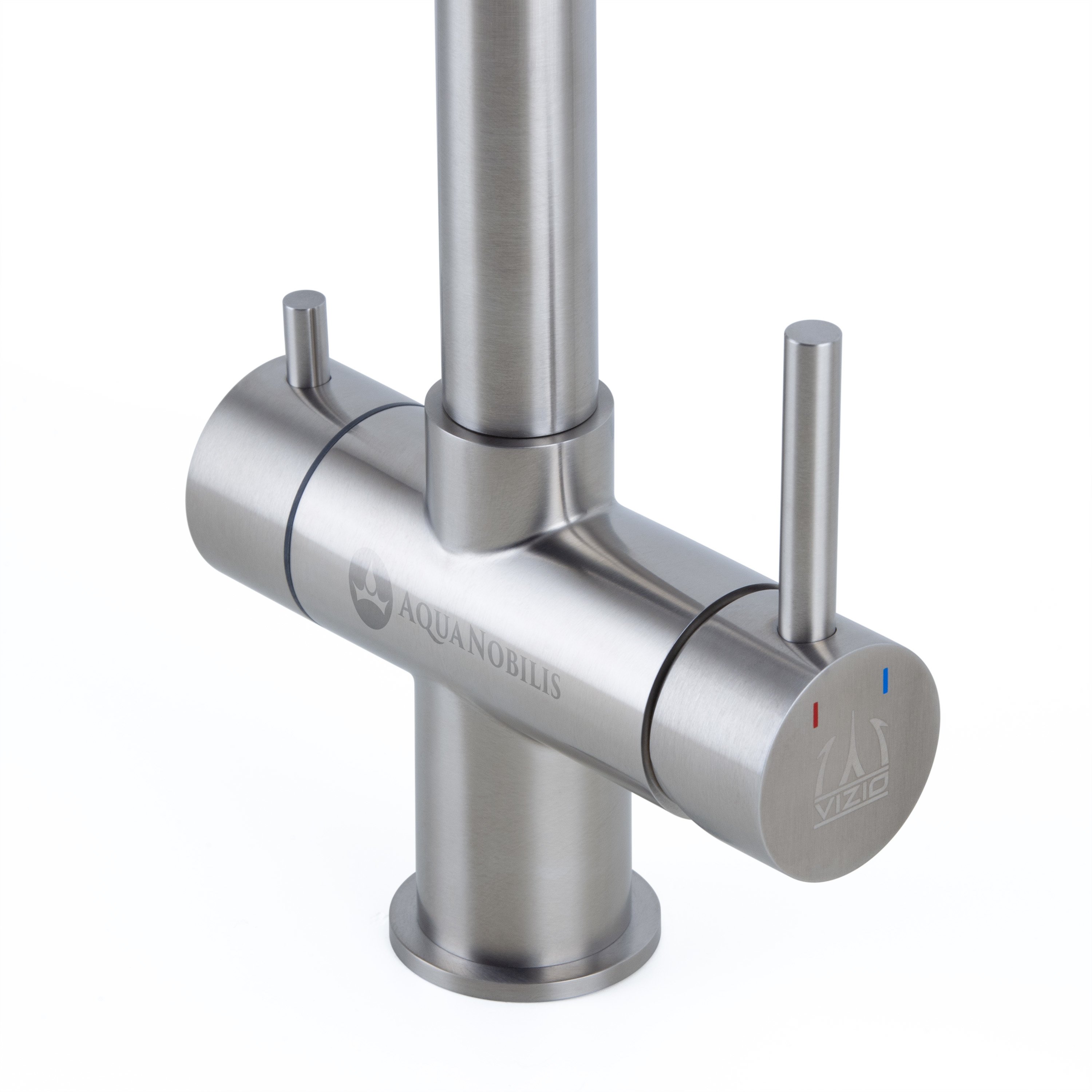

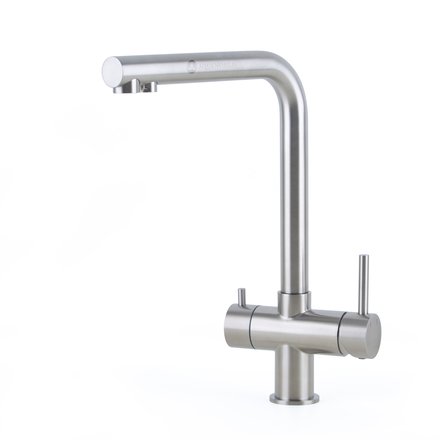

Alvito Atessa stainless steel three way faucet, high, matt
- Use service water (hot/cold) and filter water separately but still from one tap.
- Housing and outlet pipe are made entirely of high-quality, brushed AISI 316 stainless steel. (Therefore particularly suitable for reverse osmosis and carbonator systems).
- Made in Italy: Elegant and timeless design and excellent workmanship.
- Smooth-running spout that can be swiveled through 360°.
- Separate water supply of the filtered water to the outlet.
- Durable mixers made of ceramic.
- Suitable for all under-sink filters.
Installation
- Height of the Alvito Atessa (high) tap: 350 mm (from the worktop).
- Height of the spout: 317 mm (from the worktop).
- For a maximum worktop thickness of 47 mm.
- Connection hoses: 450 mm. If necessary, these can be extended.
- Pour plus d'informations et les dimensions exactes, veuillez consulter l'onglet Caractéristiques.
Scope of delivery
A stainless steel 3 way tap Alvito Atessa, high, matt consisting of- a stainless steel three-way faucet with ceramic valves
- three aerators
- Three 45 cm flexible hoses with 3/8" union nuts for connecting hot, cold and filter water
- an adapter to 1/4" hoses (quick connector)
- all components required for assembly

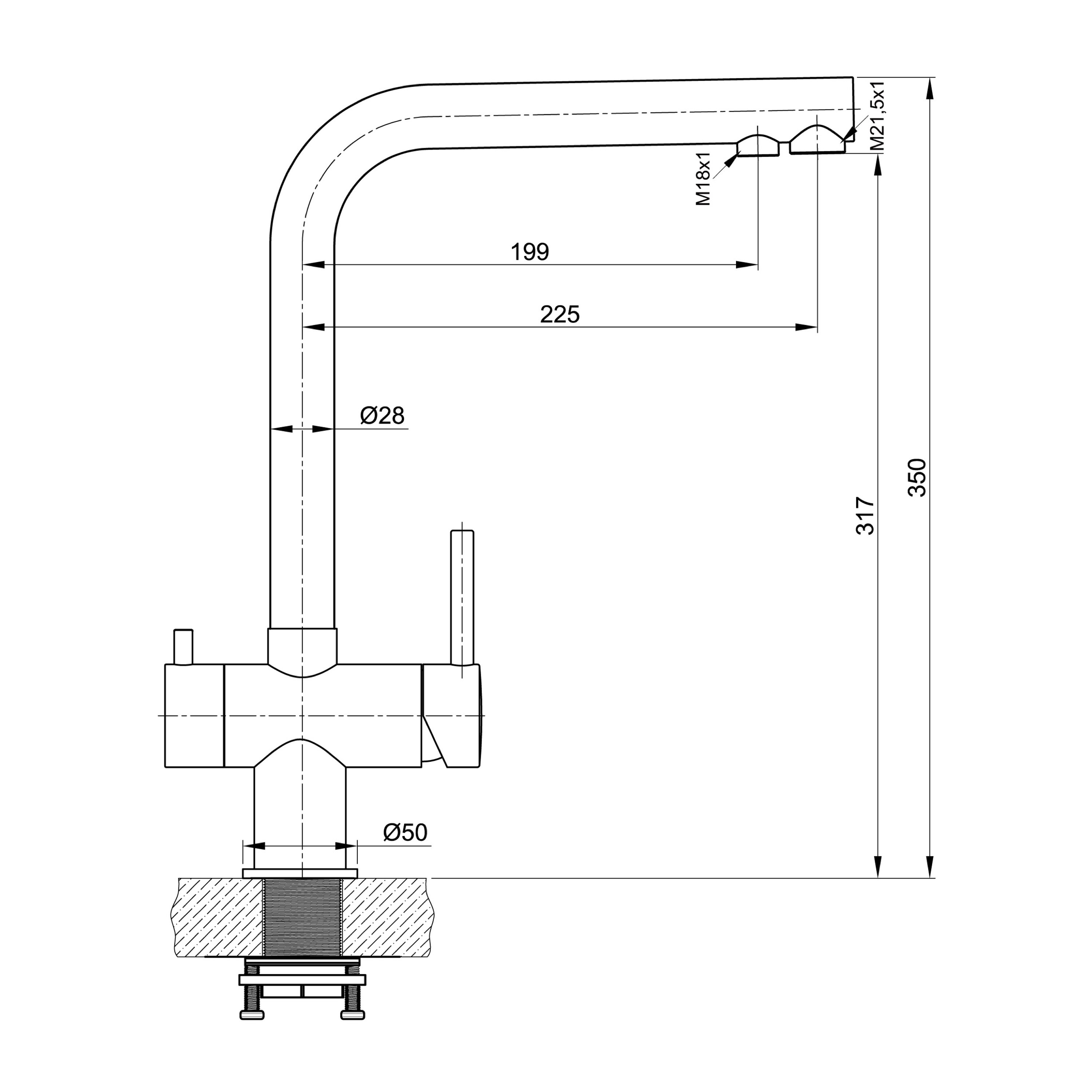

Dimensions and other information on the sink tap Alvito Atessa high matt
| H x W x D: | 350 x 150 x 265 mm |
|---|---|
| Material: | Stainless steel (AISI 316) |
| Surface: | matt |
| Suitable for low pressure boilers: | No |
| Length of the connection hoses: | 450 mm |
| Connection: | 3/8"AG |
| Outlet for the filterted water: | separate perlator |
| Height of the outlet: | 317 mm |
| Distance outlet for filtered water - tap central axis: | 199 mm |
| Distance outlet for normal water - tap central axis: | 225 mm |
| Distance between outlets: | 26 mm |
| Diameter of the bore in the countertop: | 35 mm |
| Max. thickness of the countertop: | 47 mm |
