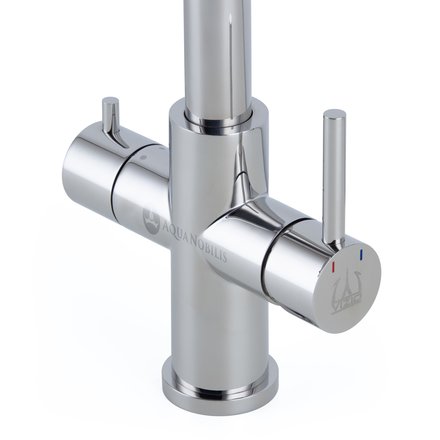

Alvito Calabro stainless steel 3 way tap with pull-out shower, polished
Description
Alvito Calabro Stainless steel three way faucet with pull-out shower head, polished
- Use service water (hot/cold) and filtered water separately but still from one tap.
- Hot water can also be used conveniently via a pull-out shower head with two functions (normal jet / shower jet).
- If necessary, the 4th way can also be opened and connected to a carbonator system. (Additional hose is required!)
- Housing and outlet pipe are made entirely of high-quality, highly polisehd AISI 316 stainless steel. (Therefore particularly suitable for osmosis and carbonator systems.)
- Made in Italy: Elegant and timeless design and excellent workmanship.
- Smooth-running spout that can be swiveled through 140°.
- Separate water supply of the filtered water to the outlet.
- Durable mixers made of ceramic.
- Suitable for all under counter filters.
Installation
- Height of the Alvito Calabro tap: 277 mm (from worktop).
- Height of the spout: 242 mm (from the worktop).
- For a maximum worktop thickness of 46 mm.
- Connection hoses: 450 mm. If necessary, these can be extended.
Scope of delivery
A Stainless steel 3 way tap Alvito Calabro with pull-out shower, polished consisting of- a stainless steel 3 way faucet with ceramic valves
- three aerators
- Three 45 cm flexible hoses with 3/8" union nuts for connecting hot, cold and filtered water
- an adapter to 1/4" hoses (quick connector)
- all components required for assembly
Dimensions and other information on the sink tap Alvito Calabro shiny
| H x W x D: | 277 x x mm |
|---|---|
| Material: | Stainless steel (AISI 316) |
| Surface: | shiny |
| Suitable for low pressure boilers: | No |
| Length of the connection hoses: | 400 mm |
| Connection: | 3/8"AG |
| Outlet for the filterted water: | separate perlator |
| Height of the outlet: | 242 mm |
| Distance outlet for filtered water - tap central axis: | mm |
| Distance outlet for normal water - tap central axis: | mm |
| Distance between outlets: | 62 mm |
| Diameter of the bore in the countertop: | 35 mm |
| Max. thickness of the countertop: | mm |
