Carbonit WS6 3 way tap
Description
Carbonit WS6 three way faucet
- Wash- and filtered water separately available and still from the same tap.

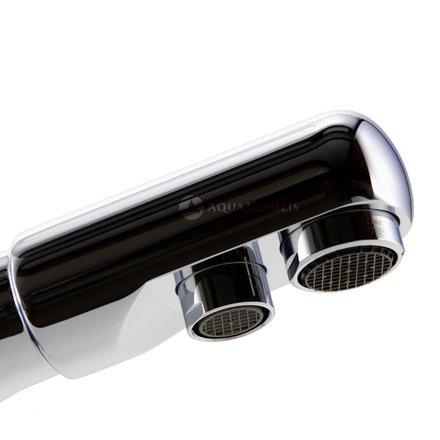

- Separate valves and outlets for filtered- and wash water.
- Housing and discharge pipe made from chrome-plated brass.
- Ceramic seals, 360 degree tilting tap.
- Low profile: ideal for installation underneath windows.
- With a connecting adaptor compatible as well as for whirler. (Check distance between the two water outlets to prevent interference between the whirler and the other discharge!)
- Compatible with all the under counter filters.
Installation
- Carbonit WS6 tap height: 22 cm (measured from the worktop).
- Discharge clearance height: 17.5 cm (measured from the worktop).
- Fits a maximum worktop thickness of 4.7 cm.
- Connecting hose length: 35 cm. As required, these can be extended.
- For further information and exact dimensions please refer to the tab Characteristics.
Scope of delivery
This Carbonit sink tap WS6 set contains the following parts- one three-way sink tap with ceramic valves
- two perlators
- three flexible hoses (35 cm long) with 3/8" union nuts for hot, cold and filtered water
- one adapter 3/8" male thread for filtered water
- all parts needed for mounting
Dimensions and other information on the sink tap Carbonit WS 6
| H x W x D: | 220 x 53 x 265 mm |
|---|---|
| Material: | Brass |
| Surface: | shiny chrome |
| Suitable for low pressure boilers: | No |
| Length of the connection hoses: | 355 mm |
| Connection: | 3/8"ET, 3/8" Union nut |
| Outlet for the filterted water: | separate perlator |
| Height of the outlet: | 175 mm |
| Distance outlet for filtered water - tap central axis: | 200 mm |
| Distance outlet for normal water - tap central axis: | 226 mm |
| Distance between outlets: | 26 mm |
| Diameter of the bore in the countertop: | 32 - 35 mm |
| Max. thickness of the countertop: | 47 mm |
