Quadrodesign Idealaqua Inox 383 ON stainless steel 3 way tap, black gold
Description

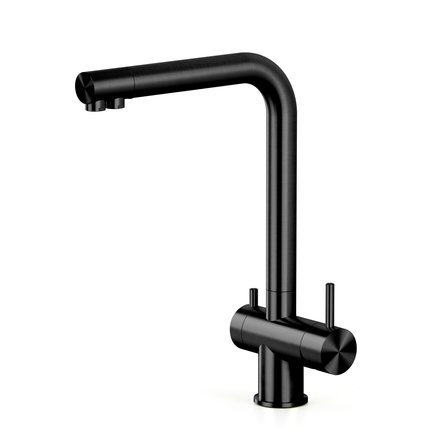

Quadrodesign Idealaqua Inox 383 ON stainless steel three-way faucet, black gold
- Use service water (hot/cold) and filter water separately but still from one tap.
- Housing and outlet pipe are made entirely of the highest-quality, brushed AISI 316L stainless steel. (Therefore particularly suitable for reverse osmosis and carbonator systems).
- The surface of the stainless steel is specially treated during production so that the tap appears in black gold.
- Made in Italy: faucet with an elegant and timeless design and excellent workmanship in the classic "L-shape".
- Smooth-running spout that can be swiveled through 360°.
- Separate water supply of the filtered water to the outlet.
- Durable mixers made of ceramic.
- Suitable for all under-sink filters.
Installation

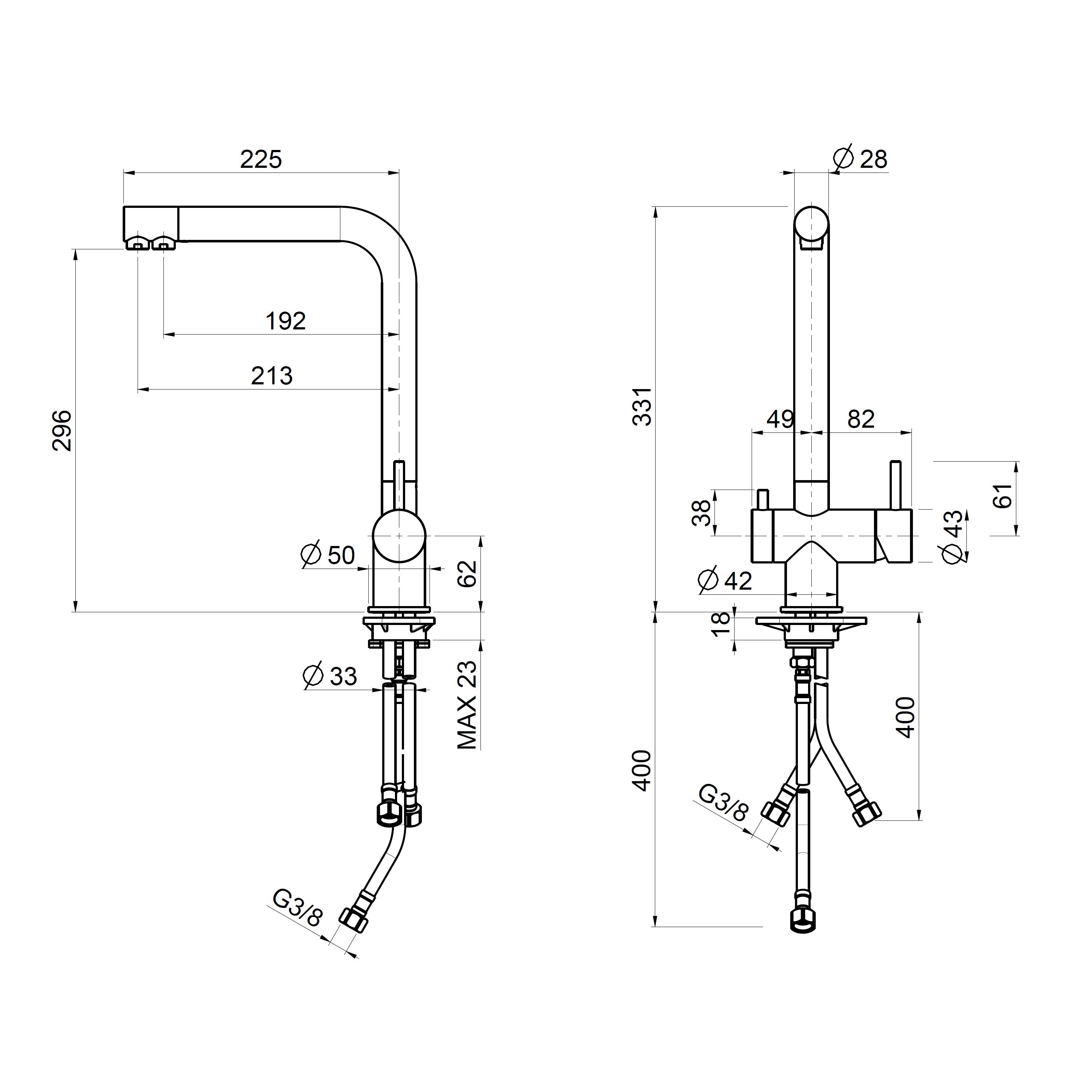

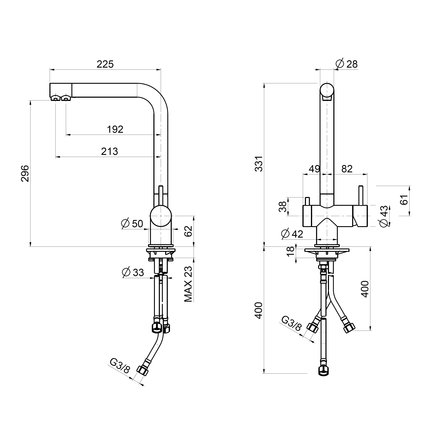

- Height of the tap: 335 mm (from the worktop).
- Height of the spout: 305 mm (from the worktop).
- For a maximum worktop thickness of 65 mm.
- Connection hoses: 400 mm. If necessary, these can be extended.
- For further information and exact dimensions please refer to the tab Characteristics.
Scope of delivery
A stainless steel 3 way tap Quadrodesign Idealaqua Inox 383 ON, black gold consisting of- a stainless steel three-way faucet with ceramic valves
- three 40 cm flexible hoses with 3/8" union nuts for connecting hot, cold and filter water
- all components required for assembly
Characteristics
Characteristics
| Suitable for low pressure boilers: | No |
| Width: | 130 mm |
| Height: | 335 mm |
| Depth: | 243 mm |
| Finish: | Matt |
| Length of the hoses: | 400 mm |
| Connection: | 3/8" union nut |
| Outlet: | Separate |
| Height of the outlet: | 305 mm |
| Distance outlet for filtered water - tap central axis: | 192 mm |
| Distance outlet for normal water - tap central axis: | 214 mm |
| Distance between outlets: | 22 mm |
| Diameter of the bore in the countertop: | 35 mm |
| Max. thickness of the countertop: | 65 mm |
| Material: | Stainless steel (V2A) |
