Carbonit VARIO-HP Kitchen
Description
Carbonit VARIO-HP Kitchen under counter water filter
- Pollution-filtered drinking water, right from the water connection in your kitchen.
- The outstanding filtration results have been proven by many scientific assessments.
- Set is conceived for the separate water withdrawal via a separate sink tap or a three-way sink tap.
- The set includes a VARIO-HP filter housing with practical quick couplings, the mating hoses and fittings.
- The filtration system can be connected easily to the water supply in any standard kitchen and is hidden elegantly under the counter.
- Cartridge replacement is comfortable and easy with the quick couplings.
- Insouciant water enjoyment for the entire family.
Compatible filter cartridges
- The Carbonit VARIO-HP Kitchen will be delivered with a NFP Premium-9 filter cartridge:
- pure activated carbon filter cartridge
- filter mesh: 0.45 µm; flow rate: 2.5 l/min (at 4 bar)
- very high retention rates for heavy metals, pesticides, drug contaminations and chlorine
- provides the highest protection against bacteria (see assessments)
- Compatible to all 9 3/4" filter cartridges.
- For hygienic reasons, we recommend replacement of the cartridges every 6 months (according to DIN 1988).
- Do not miss any cartridge replacement, apply for our non-binding and free of charge filter subscription service.
Installation

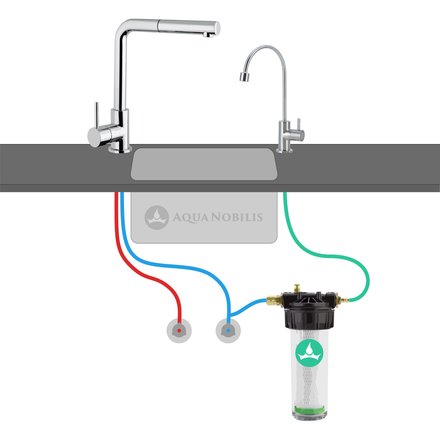

- The VARIO-HP Kitchen filter unit can be installed at any standard water connection in the kitchen or in the bathroom.
- The unit can be mounted to the wall or simply positioned without attaching.
- The assembly is delivered with an angle T-valve (3/8") and it is thus designed for separate water withdrawal.
- Hoses and 3/8-inch fittings are enclosed in the set. As required, these can be extended.
- Only to be used with cold water and must be protected against freezing.
Dimensions and other information on the Carbonit VARIO-HP Kitchen filter
Type of connection: | Under counter |
---|---|
H x B x T: | 340 x 200 x 150 mm |
Material: | Grilamid TR 90, POM (Hostaform C 2571) |
Length of the filter cartridge: | 248 mm | 9 3/4" |
Filter mesh: | 0,45 µm |
Flow rate (at 4 bar): | approx. 2,5 l/min |
Adsorptive retention rate: Polar pesticides, medical residues, bacteria: | > 99% |
Adsorptive retention rate: Chlorine: | > 99% |
Adsorptive retention rate: Lead, Copper: | > 90% |
Blocks bacteria: | Yes |
Adsorptive retention capacity: | 10 m3 |
Particle retention capacity: | 10 m3 |
Max. useful life of the filter cartridge: | 6 months |
Suitable for low pressure boilers: | Yes |
Length of the connection hoses: | approx. 800 mm |
Connection: | 3/8" union nut, Compression fitting (10 mm), NW 7,2 Quick couplings |
Videos
Product videos
Scope of delivery
Scope of delivery
This Carbonit VARIO-HP Kitchen set contains the following parts
- one Carbonit VARIO-HP basic module with device key

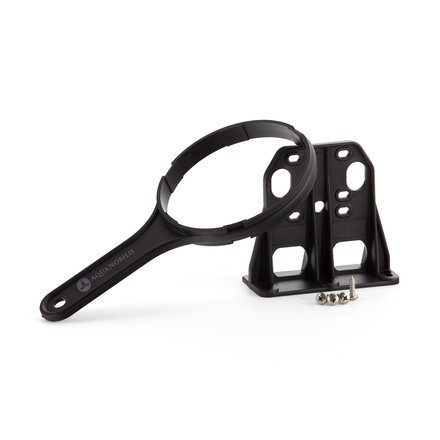

- one Carbonit VARIO-HP wall mount plastic inlcuding screws to mount it on the device head
- one Carbonit VARIO connection kit coupling DN 7,2
- one inlet hose kit containing:
- one flexible hose (approx. 80 cm long with straight connections)
- with an angle valve tee (3/8") on one side
- and a ball valve with nipple (DN 7,2) on the other side
- one outlet hose kit containing:
- one flexible hose (approx. 80 cm long with straight connections)
- with a quick coupling (DN 7,2) on one side
- and a union nut (3/8") on the other side
- one Carbonit NFP Premium-9 filter cartridge
