myVARIO UNO
Aqua Nobilis

Item number: AN-MYVARIO-UNO

Put together the perfect drinking water filer in a few steps. Customised and pre-assembled to your individual wishes! Choose your filter cartridge (plus an optional sink tap and water vitalisation) and get a free 0.6 l soulbottle as a present with each myVARIO UNO!
1. Choose a filter housing
256,10 €

including 17% VAT., no shipping costs

5 pc. In stock

Shipping time: 1 - 3 workdays

2. Filter cartridge
2. Filter cartridge
    • Powerful activated carbon filter cartridge for highest demands.
    • Outstanding retention rates combined with a comfortable flow rate.
    • Efficient filtration of pesticides, drug residues, chlorine, heavy metals and bacteria.
    • 0.40 µm fine, flow rate: 3.5 L/min (at 4 bar).
    • Read the complete product description.
    • Activated carbon filter cartridge containing EM-ceramic.
    • Excellent retention rates in combination with the vitalising effect of effective microorganisms®.
    • Efficient filtration of pesticides, medical residues, chlorine, heavy metals and bacteria.
    • 0.45 µm fine, flow rate: 2.7 L/min (at 4 bar).
    • Read the complete product description.
    • Combined activated carbon filter cartridge.
    • Particularly powerful against heavy metals: thanks to the integrated KDF filter granulate.
    • Advised with old pipes and high heavy metal loads in the raw water.
    • Plus effective filtration of pesticides, drug residues and chlorine.
    • 2.50 µm fine, flow rate: 1.5 L/min (at 4 bar).
    • Read the complete product description.
    • Combined activated carbon filter cartridge.
    • Highest bacteria and virus security thanks to the integrated 0.02 µm fine capillary membrane.
    • Plus: Filtration of pesticides, medical residues, chlorine and heavy metals.
    • Flow rate: 2 L/min (at 4 bar), filter mesh: 8 µm (activated carbon) & 0.02 µm (capillary membrane).
    • Read the complete product description.
    • Activated carbon filter cartridge with a vitalising plus.
    • Integrated whirling unit and EM-ceramic in combination with excellent retention rates.
    • Efficient filtration of pesticides, drug residues, chlorine, heavy metals and bacteria.
    • 0.70 µm fine, flow rate: 3.8 L/min (at 4 bar).
    • Read the complete product description.
3. Structuration (optional)
3. Structuration (optional)
    • Soft and fresh water with the structures of spring water.
    • Improved cellular water and nutrient uptake capabilities.
    • Effects certified by assessments.
    • Made from high-grade 24 carat (fair-trade) gold-plated brass.
    • Absolutely maintenance free! No electricity, no chemicals, no magnets!
    • This kit contains the mating hoses.
    • Read the complete product description.
    • First-calss premium water vitalisation
    • Soft and fresh water with the structures of spring water.
    • Improved cellular water and nutrient uptake capabilities.
    • Effects certified by assessments.
    • Made from high-grade 24 carat (fair-trade) gold-plated brass.
    • Absolutely maintenance free! No electricity, no chemicals, no magnets!
    • This kit contains the mating hoses, adapters and a wall mount.
    • Read the complete product description.
4. Sink tap (optional)
4. Sink tap (optional)
5. Present - Soulbottle (0.6 l)

A special thank you! With each customised filter kit we give you a 0.6 L soulbottle. Choose your favourite design:

5. Present - Soulbottle (0.6 l)
Your configuration
1. Filter housing
1x myVARIO UNO 256,10 €
Total incl. options

Description

Aqua Nobilis myVARIO UNO under counter water filter

  • Pollution-filtered drinking water, right from the water connection in your kitchen.
  • Premium quality and optimum filtering performance, adapted to the individual needs.
  • All in one! Choose:
    1. Filter housing
    2. Filter cartridge(s)
    3. Water vitalisation (optional)
    4. Sink tap (optional)
    5. Gratis 0.6 l soulbottle as a present
  • With the well-proven VARIO-HP filter housing, practical quick couplings and the mating hoses and fittings
  • The 90° angled connection hoses are perfectly suited for the installation where space is limited.

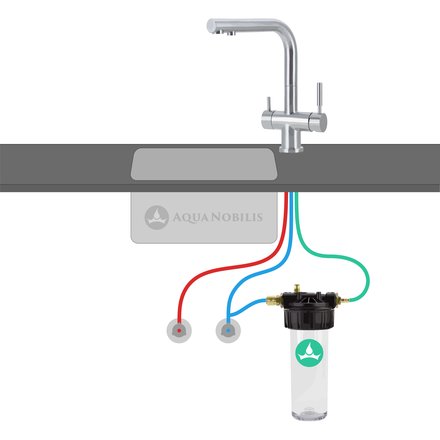

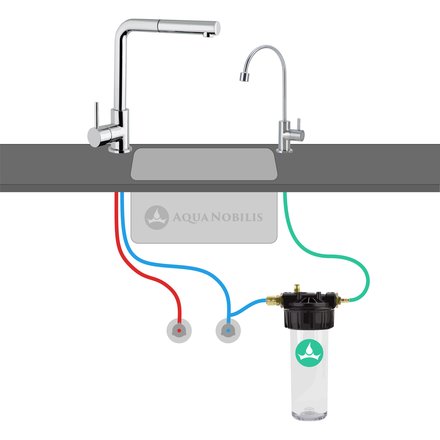

  • Set is conceived for the separate water withdrawal via a separate sink tap or a three-way sink tap.
  • The filtration system can be connected easily to the water supply in any standard kitchen and is hidden elegantly under the counter.
  • Cartridge replacement is comfortable and easy with the quick couplings.

Installation

  • The Aqua Nobilis myVARIO UNO filter unit can be installed at any standard water connection in the kitchen or in the bathroom.
  • The unit can be mounted to the wall or simply positioned without attaching.
  • Dimensions without hoses (W x H x D): 20 x 35 x 16 cm3. With hoses 33 cm wide.
  • The assembly is delivered with an angle T-valve (3/8") and it is thus designed for separate water withdrawal.
  • Hoses and 3/8-inch fittings are enclosed in the set. As required, these can be extended.
  • Only to be used with cold water and must be protected against freezing.

Back to the myVARIO overview

Videos

Product videos



Scope of delivery

Scope of delivery

This myVARIO UNO set contains the following parts
  • one Carbonit VARIO-HP basic module with device key

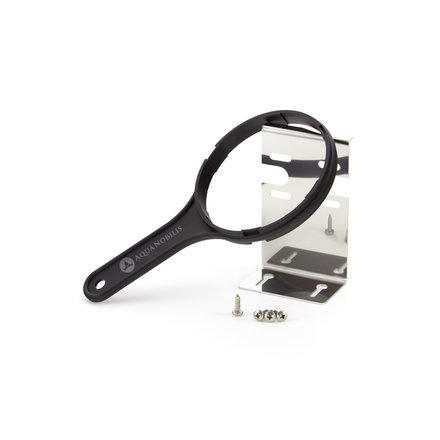

  • one Carbonit VARIO-HP wall mount stainless steel inlcuding screws to mount it on the device head
  • one VARIO connection kit coupling DN 7,2 (nickel-plated)

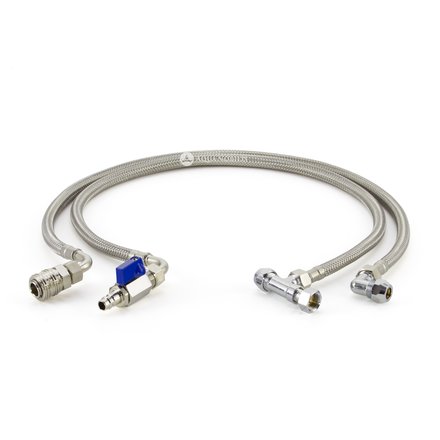

  • one inlet hose kit containing:
    • one flexible hose (approx. 80 cm long with one straight and one 90° angled connection)
    • with an angle valve tee (3/8") on one side
    • and a stainless steel ball valve with nipple (DN 7,2) on the other side
  • one outlet hose kit containing:
    • one flexible hose (approx. 80 cm long with one straight and one 90° angled connection)
    • with a quick coupling (DN 7,2) on one side
    • and one 90° compression fitting (10 mm) on the other side
  • other products, depending on your selection of options

Files

Files

Characteristics

Characteristics

Width: 200 mm
Height: 350 mm
Depth: 160 mm
Length of the filter cartridge: 248 mm (9 3/4")
Length of the hoses: 800 mm
Connection: 3/8" union nut Coupling DN 7.2 Compression fitting (10 mm)
Material: Grilamid TR 90 POM (Hostaform C 2571)
