Carbonit CITO-QC GFP
Description
Carbonit CITO-QC GFP under counter water filter
- The Carbonit CITO-QC is the further development of the confirmed VARIO-HP filter housing.
- The outstanding filtration results have been proven by many scientific assessments.
- Filter replacement even simpler: Thanks to the QuickConnect (QC) bayonet coupling the filter-socket can be easily dismounted as a whole.
- The head of the filter-assembly itself remains permanently attached to the wall, no hoses have to be touched.
- The filer-socket can be opened and the filter cartridge can be replaced conveniently in the sink using the enclosed keys.
- The filtration system can be connected easily to the water supply in any standard kitchen and is hidden elegantly under the counter.
- This GFP set will be delivered with a GFP Premium-9 filter cartridge.
- Therefore even higher contaminant retention and flow rates than the popular Classic set.
- The 90° angled connection hoses are perfectly suited for the installation where space is limited.

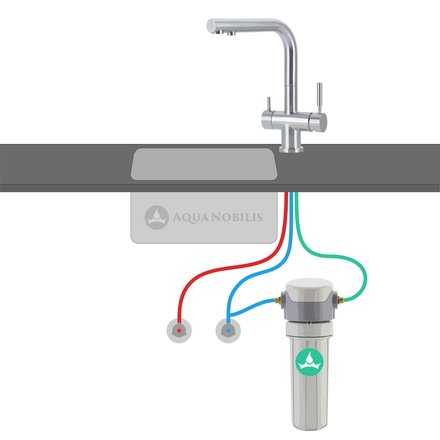

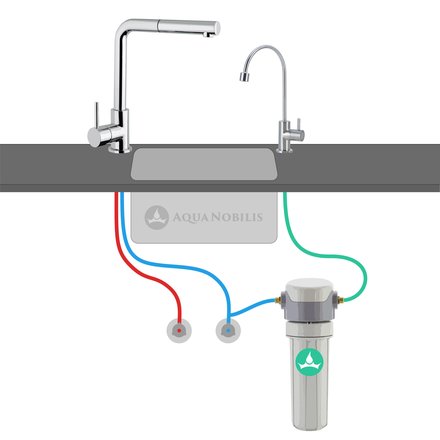

- Set is conceived for the separate water withdrawal via a separate sink tap or a three-way sink tap.
Compatible filter cartridges

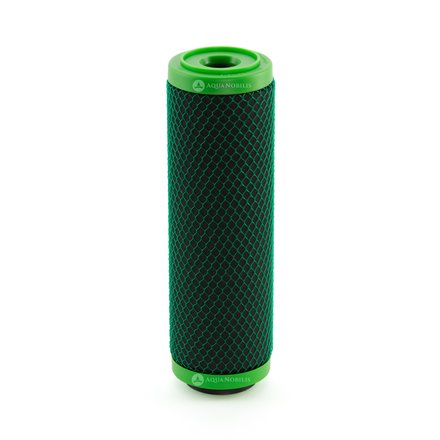

- The Carbonit CITO-QC GFP will be delivered with a GFP Premium-9 filter cartridge:
- pure activated carbon filter cartridge
- filter mesh: 0.40 µm; flow rate: 2 l/min (at 4 bar)
- very high retention rates for heavy metals, pesticides, drug contaminations and chlorine
- provides the highest protection against bacteria (see assessments)
- Compatible to all 9 3/4" filter cartridges.
- For hygienic reasons, we recommend replacement of the cartridges every 6 months (according to DIN 1988).
- Do not miss any cartridge replacement, apply for our non-binding and free of charge filter subscription service.
Installation
- The CITO-QC GFP filter unit can be installed at any standard water connection in the kitchen or in the bathroom.
- The unit is to be permanently installed to the wall.
- Dimensions without hoses (W x H x D): 17 x 38.5 x 14.5 cm3. With hoses 26.5 cm wide. CAUTION: Filter cartridge replacement requires a free space of 5 cm below the installed unit.
- The assembly is delivered with an angle T-valve (3/8") and it is thus designed for separate water withdrawal.
- TIP: When installing the ball valve directly at the angle valve tee, the filter unit plus hoses is only 23 cm wide.
- Hoses and 3/8-inch fittings are enclosed in the set. As required, these can be extended.
- Only to be used with cold water and must be protected against freezing.
Dimensions and other information on the Carbonit CITO-QC GFP filter
| Type of connection: | Under counter |
|---|---|
| H x B x T: | 385 x 170 x 145 mm |
| Material: | PP |
| Length of the filter cartridge: | 248 mm | 9 3/4" |
| Filter mesh: | 0,40 µm |
| Flow rate (at 4 bar): | approx. 2 l/min |
| Adsorptive retention rate: Polar pesticides, medical residues, bacteria: | > 99% |
| Adsorptive retention rate: Chlorine: | > 99% |
| Adsorptive retention rate: Lead, Copper: | > 93% |
| Blocks bacteria: | Yes |
| Adsorptive retention capacity: | 15,5 m3 |
| Particle retention capacity: | 12,5 m3 |
| Max. useful life of the filter cartridge: | 6 months |
| Suitable for low pressure boilers: | Yes |
| Length of the connection hoses: | approx. 800 mm |
| Connection: | 3/8" union nut, Compression fitting (10 mm) |
Scope of delivery
Scope of delivery
This Carbonit CITO-QC GFP set contains the following parts
- one Carbonit CITO-QC basic module containing:
- one CITO-QC device head with 3/8" connections and the Quick Connect filter cup

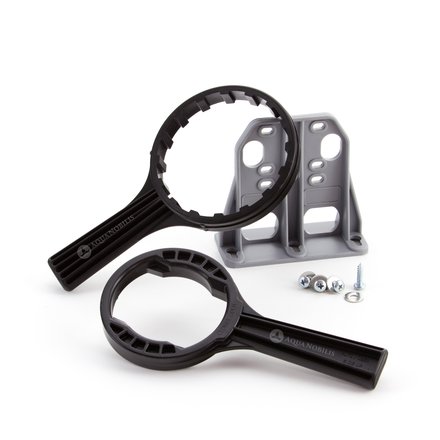

- one plastic wall mount inlcuding screws to mount it on the device head
- two device keys

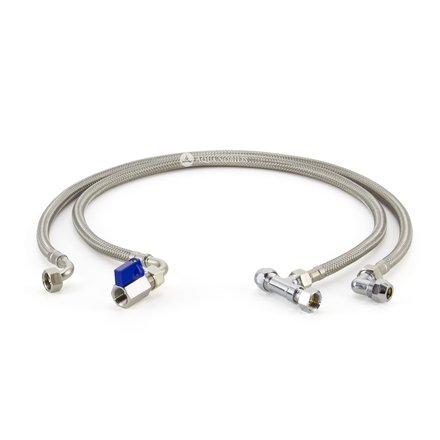

- one inlet hose kit containing:
- one flexible hose (approx. 80 cm long with one straight and one 90° angled connection)
- with an angle valve tee (3/8") on one side
- and a stainless steel ball valve on the other side
- one outlet hose kit containing:
- one flexible hose (approx. 80 cm long with one straight and one 90° angled connection)
- with a union nut (3/8") on one side
- and one 90° compression fitting (10 mm) on the other side
- one Carbonit GFP Premium-9 filter cartridge
