Carbonit VARIO-HP basic module
Description
Carbonit VARIO-HP Basic Module
- Set consists of 9 3/4" housing with appropriate key.
- Wall mount, hoses and filter cartridges are not enclosed.
- Ideal for do-it-yourself people and talented craftsmen, who would like to create their individual filter system.
Compatible cartridges
- The Carbonit VARIO-HP Basic Module is delivered without filter cartridge.
- Compatible to all 9 3/4" filter cartridges.
- For hygienic reasons, we recommend replacement of the cartridges every 6 months (according to DIN 1988).
- Do not miss any cartridge replacement, apply for our non-binding and free of charge filter subscription service.
Installation
- The housing has female 3/4-inch inlet and outlet threads.
- There may be a need for a connection kit, as well as compatible hoses.
- You may want to select and order a wall mount as needed.
- Only to be used with cold water and must be protected against freezing.
Dimensions and other information on the Carbonit VARIO-HP basic module
| Type of connection: | Under counter |
|---|---|
| H x B x T: | 340 x 125 x 150 mm |
| Material: | Grilamid TR 90, POM (Hostaform C 2571) |
| Length of the filter cartridge: | 248 mm | 9 3/4" |
| Flow rate (at 4 bar): | approx. 22 l/min |
| Suitable for low pressure boilers: | Yes |
| Connection: | 3/8" internal threats |
Scope of delivery
Scope of delivery
This Carbonit VARIO-HP basic module contains the following parts
- one Carbonit VARIO-HP filter housing

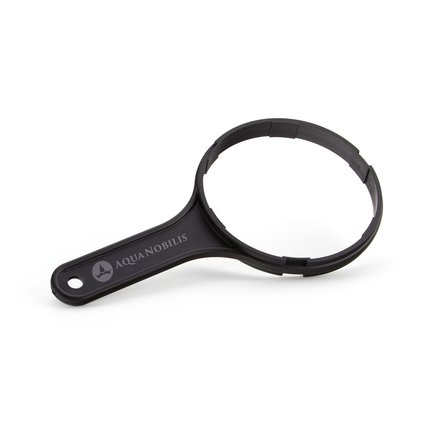

- one Carbonit VARIO-HP device key
